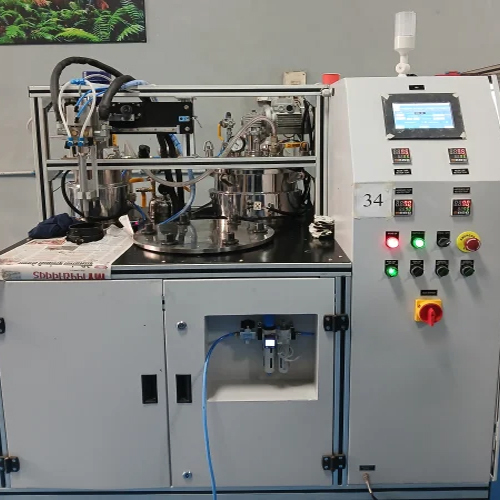

About Metering and mixing of Epoxies, Polyurethanes and Silicones

FEATURES :

->Adaptable to wind range of external fluid reservoir.

->Rotary table with adjustable diameter (30-200mm).

->Volumetric short control, Cycle status indication.

->Mixing ratio (Fixed ratio): As per material specifications.

->Automatic single way with rotary positive dispending flow directional valves for maintaining accurate ratio.

->Fixed ratios available over a 1:1 to 1:10 over range provide precise ratio control ratios can be changed with adjusting speed of screw / gear metering pump.

->Built in external valve interface allows simple operation of remote valving ( any type of atmospheric condition on weather )

->Full Volume purge / prime system allow purging or priming without disturbing pre-set volumes & ratio.

->Fully interlocked PLC with HMI.

->Mixing head designed homogeneously mix & dispensed the two components/parts.

SPECIFICATIONS :

->Ratio Variation from 1:1 to 1:10.

->Tank Size : Standard ( 5 - 200 liters ) & Customize as per requirement.
->Shot Size : 3 grams to 50 grams.

->Flow Rate : Variable with shot size.

->Weight : 300 - 900 kg Approx.

->Machine Size : 100mm x 100mm x 1500mm (L x W x H)

->Operating condition : 415 V AC

->Pneumatic pressure : 5 - 7 kg/cm2.

APPLICATIONS :

->Bonding, Coating.

->Polish Paper Wheel, Buffing Wheel, Buzzer, audio speakers, AC Clutch etc.

->Whether it is automotive electronics, electrical, Air filter, medical or other industries uses.
